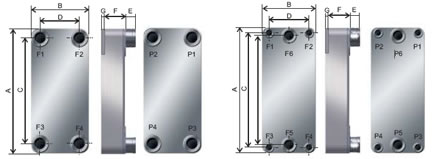

Dimensional data

CBE Model E5AS B5 B8/BX8T B15 B10T B12 B16 B16DW B25T B28 B80
A (mm) 192 187 310 465 289 287 376 376 526 526 526
B (mm) 73 72 72 72 119 117 119 119.5 119 119 119
C (mm) 154 154 278 432 243 234 320 329 479 470 470
D (mm) 40 40 40 40 72 63 63 72 72 63 63
E (mm) 0 20.1 20.1 20.1 20.1 27.1 27.1 20.1 20.1 27.1 27.1
F(mm) 2+2.17×(NP2) 4.3+2.24×NP 4.3+2.24×NP 4.3+2.24×NP 4+2.24×NP 4.4+2.24×NP 4+2.24×NP 4+2×NP 4+2.24×NP 4+2.24×NP 4+2.24×NP
G(mm) 7 7 7 7 6 6 6 6 6 6 6
Evaporator
distributor types		 - - - - V - -   V - V, P, Q*
Max number
of plates		 40 60 60 60 140


 140


 140


 100 140


 140


 140
Max flow
capacity water (m³/h)		 4 4 4 4 12 22 22   12 22 22
Max flow
capacity water (m³/h)		 1/4" 1/4" 1/4" 1/4" 1/2" 1/2" 1/2"   1/2" 1/2" 1/2"
Min standard
connection size (inch)		 3/4" 3/4" 3/4" 3/4" 1" 1 1/4" 1 1/4"   1" 1 1/4" 1 1/4"

Specially developed for NHP Nordic Heat Pump

B35 B120T B200T B50 B57 B60 B400T B427 B439 B500T DP200 DP400 DP500
393 525 525 525 693 374 694 694 979 979 525 694 980
243 243 243 243 243 364 304 304 304 304 243 304 304
324 456 154 441 600 277 601 567 854 854 456 601 866
174 174 40 159 148 267 597 179 179 179 174 597 191
27.1 27.1 20.1 54.2 54.2 54.2 54.2 54.2 27.1 27.1 27.1 54.2 27.1
8+
2.34×NP		 10+
2.29×NP		 10+
2.29×NP		 12+
2.34×NP		 16+
2.44×NP		 16+
2.14×NP		 18+
2.29×NP		 22+
2.29×NP		 12+
2.29×NP
 12+
2.29×NP		 10+
2.29×NP		 37+
2.34×NP		 12+
2.29×NP
3 4 4 1 1 1.5 0 6 6 6 3 0.5 0
V V, P V, P - - - V, P, S 0 - V, S V, P V, P, S V, S
250 250 250 280 280 300 300
 280
 360 360 202 282 294
35 35 35 70 70 78 100 160 160 160 35 78 106
1" 7/8" 7/8" 2" 1 1/2" 2" 1 1/8" 1 5/8" 1 5/8" 1 3/8" 7/8" 1 1/8" 1 5/8"
1 1/2" 2" 2" 2 1/2" 2 1/2" 2 1/2" 3" 4" 4" 4" 2" 3" 3"
